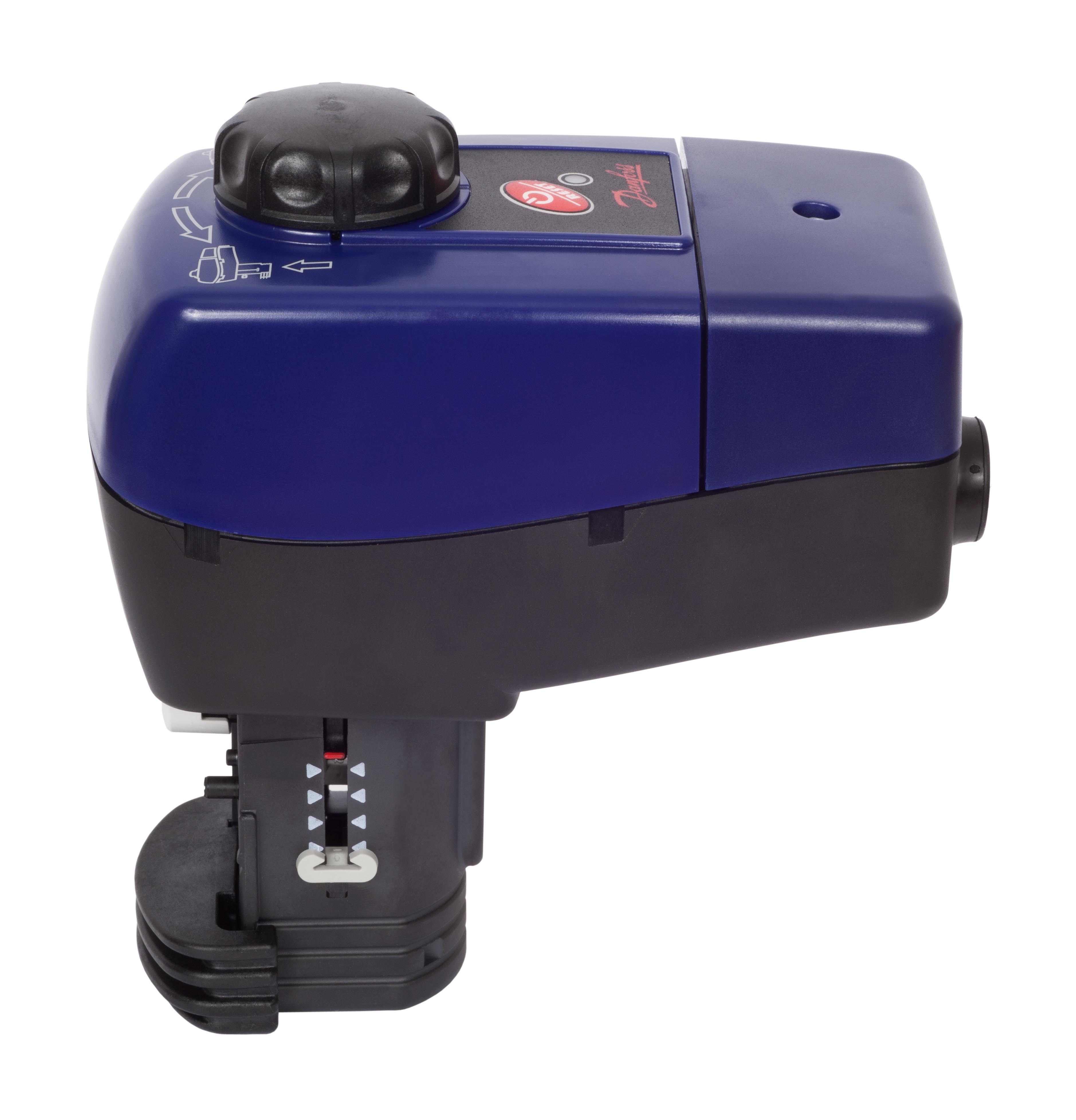

DANFOSS MODULATING ACTUATOR 24V

AME 435 QM actuator for modulating control is used with pressure independent balancing and control valve type AB-QM from DN 40 to DN 100. The actuator has some special features: · It automatically adapts its stroke to the valve end positions which reduces commissioning time · valve flow adjustment feature; flow can be variably-adjusted from linear to logarithmic or opposite. · the advanced design incorporates load related ‘switch-off’ to ensure that actuators and valves are not exposed to overload Main data: • Nominal voltage (AC or DC): 24 V, 50 Hz/60 Hz • Force: 400 N • Speed (selectable): - 7.5 s/mm - 15 s/mm • Max. medium temperature: 120 °C • Self calibrating • LED signalling • External RESET button • Output signal • Manual operation Control Signal Type: Modulating Supply Voltage 24V AC/DC IP Protection IP54 Spindle Speed(s/mm):8 Stroke (mm) 20

Danfoss
